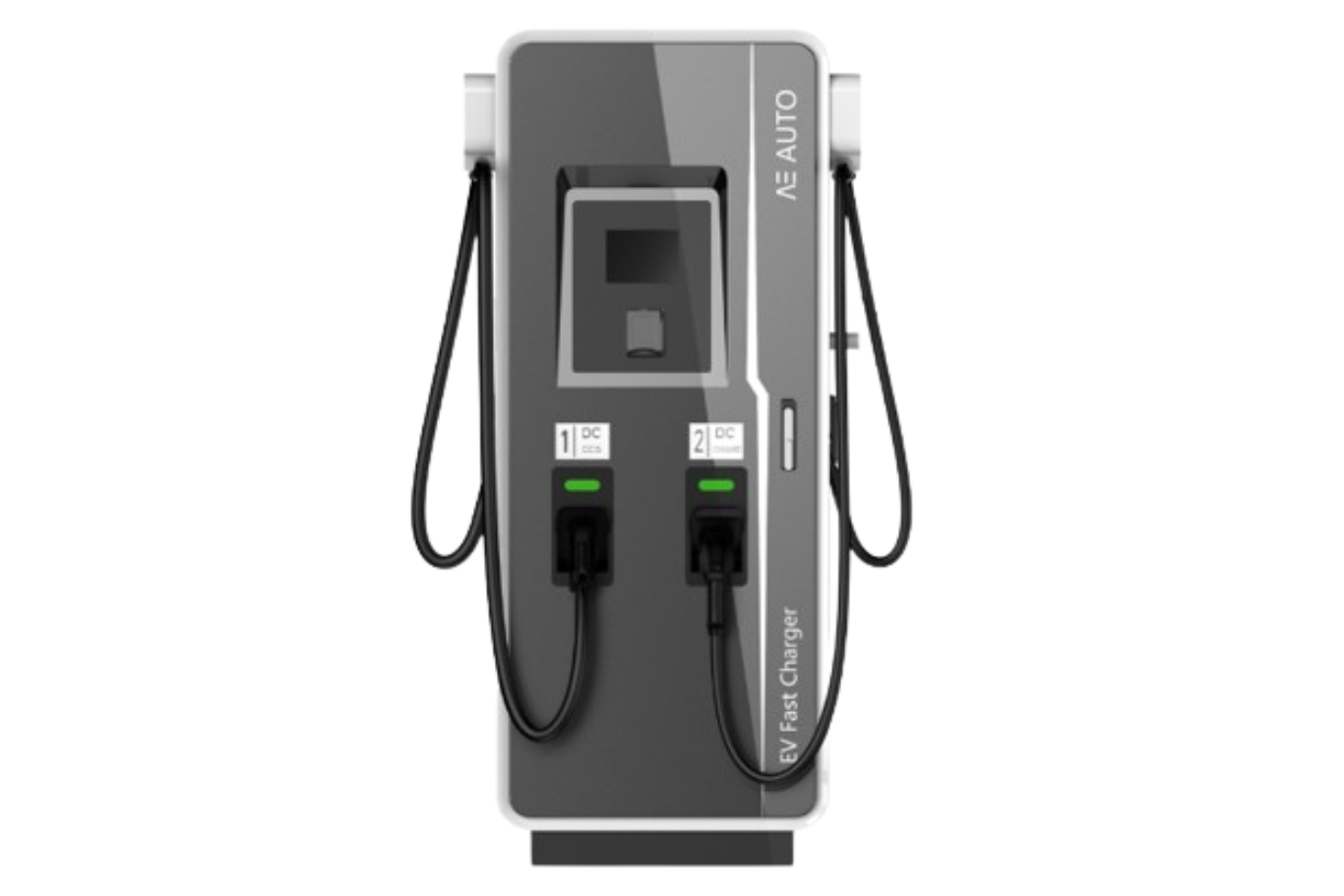

80kW charging station

Power (kW)
40 / 80
Fuel
Electric
Request quote

Our high-performance electric charging station offers a fast and efficient charging solution compatible with a wide range of electric vehicles.

With a charging capacity of 60-160kW and the ability to upgrade power modules to 20kW, this station is a top-of-the-line equipment for EV users.

The station boasts an outstanding 97% efficiency and is CE certified, ensuring both performance and safety.

Single DC output CCS
max. 80kW
Simultaneous DC output CCS
max. 40kW
Rated output efficiency
370 kg
Net weight
370 kg

Information

Our high-performance electric charging station offers a fast and efficient charging solution compatible with a wide range of electric vehicles.

With a charging capacity of 60-160kW and the ability to upgrade power modules to 20kW, this station is a top-of-the-line equipment for EV users.

The station boasts an outstanding 97% efficiency and is CE certified, ensuring both performance and safety.

Compliance with the European CCS2 standard guarantees extended compatibility with electric vehicles available on the market.

Payment options are diverse and accessible, including RFID, credit card and mobile apps, facilitating a convenient and user-friendly charging process.

The station supports OCPP 1.6J, Ethernet and 4G communications, providing optimal flexibility and connectivity.

The 7-inch colour display offers a user-friendly interface and the retractable charging cable system adds convenience and tidiness.

In addition, the station supports multiple languages, making it accessible to a wide range of international users.

This charging station is an ideal choice for those looking for a fast, efficient and easy-to-use charging solution.

Technical details

ELECTRICAL OUTPUT

Single DC output CCS
max. 80kW
Simultaneous DC output CCS
max. 40kW
Rated output efficiency
370 kg
Net weight
370 kg

Electrical input

Input voltage400Vac +/-10%, 50/60Hz, trifazic + N + PE
Input current0 – 250A
Power factor0.99 at nominal output
Rated output efficiency94%

STRUCTURE

Net weight370 kg
Dimensions (L x W x H)1880 x 580 x 750 mm
Application scenariosOutdoor floor mounting
MaterialMetal body
AlignmentDownlink
Loading groupsRound loading with two guns (CCS2)
Cable length5 m

MEDIUM

Operating temperature-30℃~+55℃
Operating humidity5%~95% non-condensing
Height above sea level2000 m
Protection classIP55
Cooling methodAir
Noise control< 65 db
MTBF17,520 hours

SECURITY

Loading modeAutomatic charging, charging by amount, charging by power, charging by set time
Communications interfaceCAN, 485, 4G or Ethernet
User interfaceLCD touch screen
Display screen7 inch UV
Mobile payment supportyes
Credit card payment supportyes
APP control supportyes
LED indicator holderyes
Emergency stop button supportyes
Upgrade remote supportyes
Rear monitoringOCPP1.6 JSON support
PROTECTION
Over-voltage protection, under-voltage protection, overload protection, short-circuit protection, leakage protection, grounding protection, high-temperature protection, low-temperature protection, lightning protection

CERTIFICATES
IEC 62196, IEC 61851, ISO/IEC 15118, DIN SPEC 70121-2014
