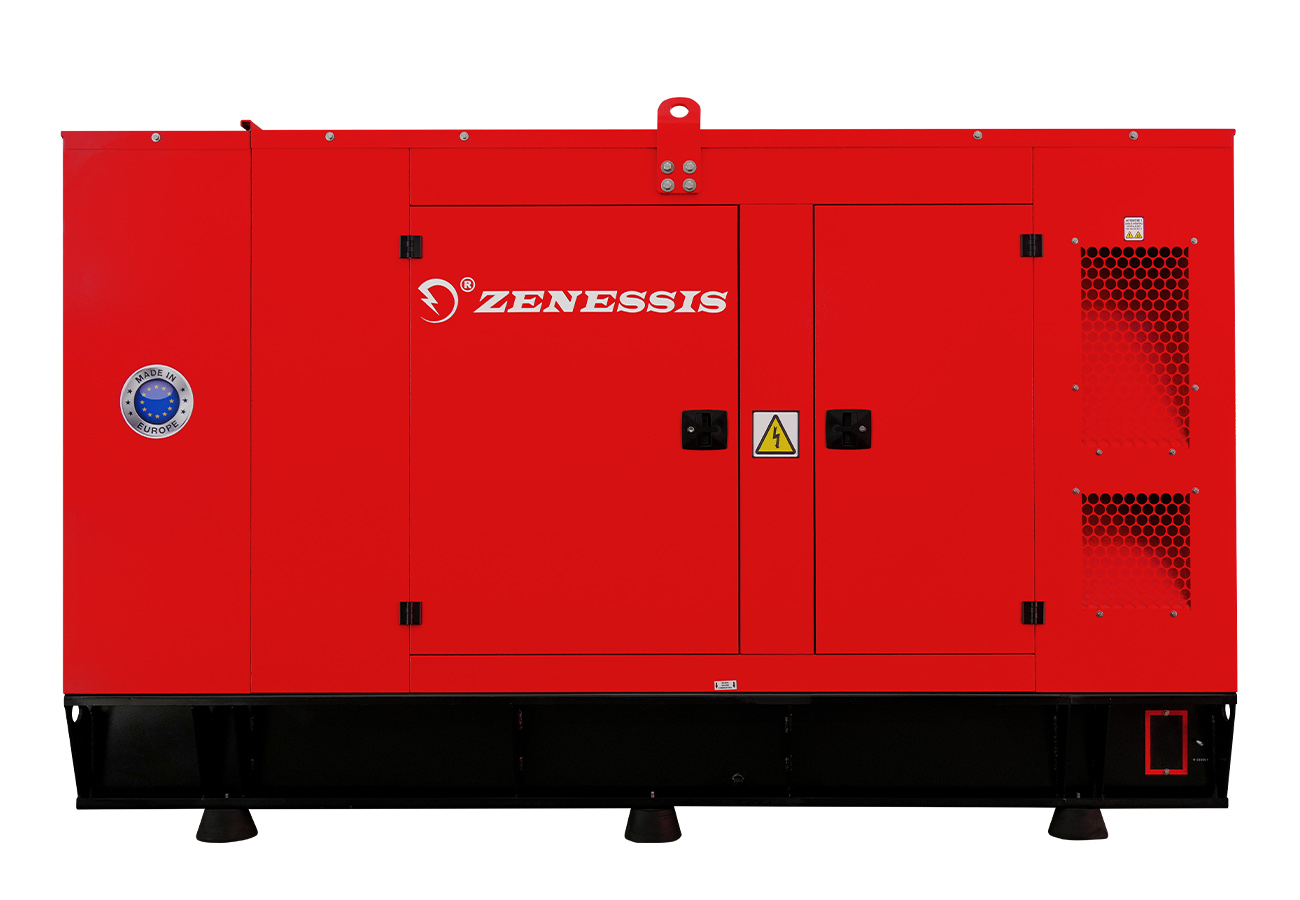

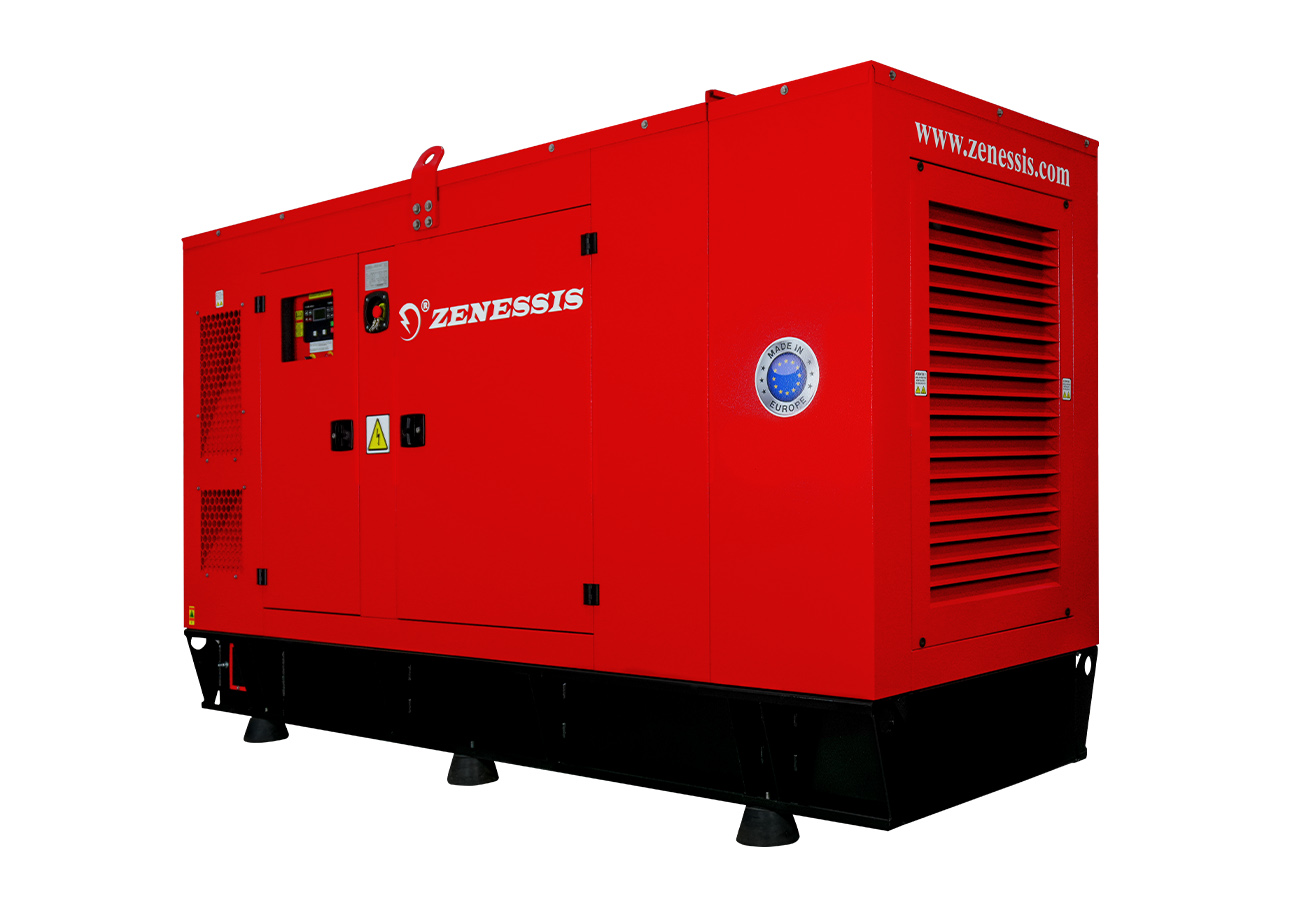

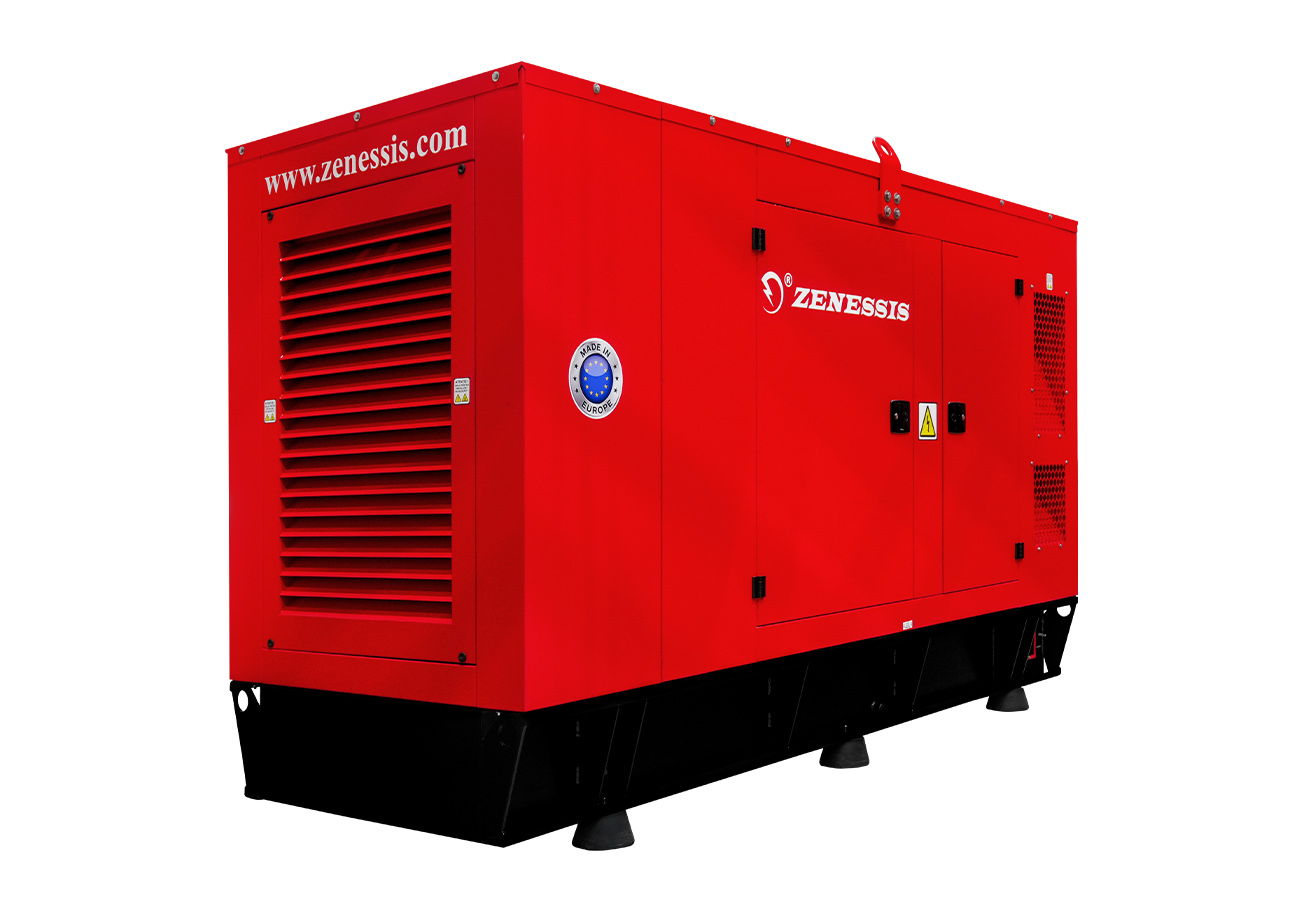

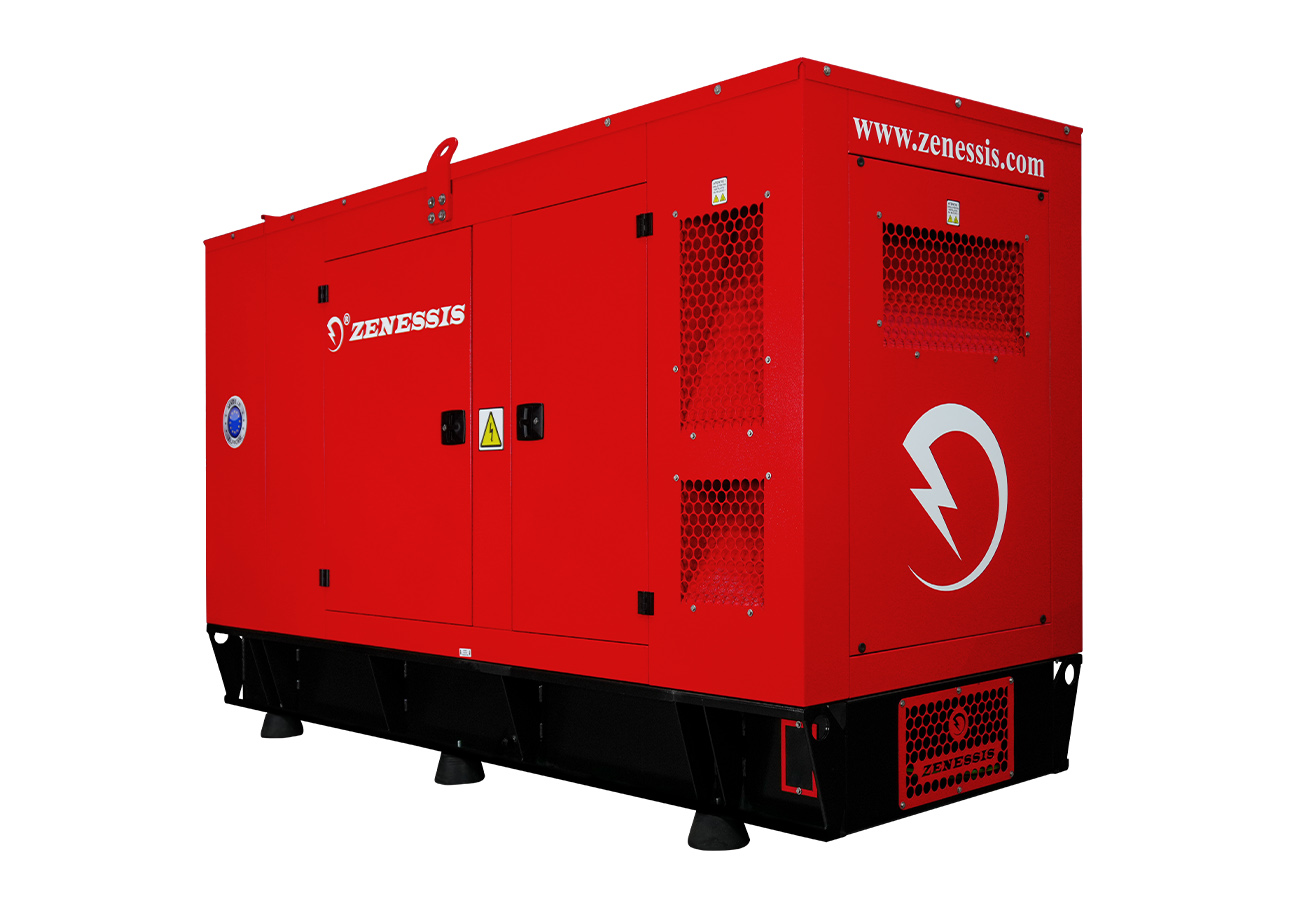

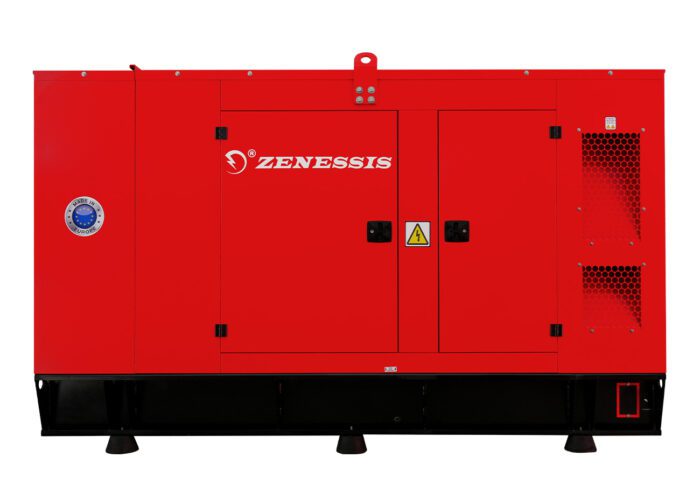

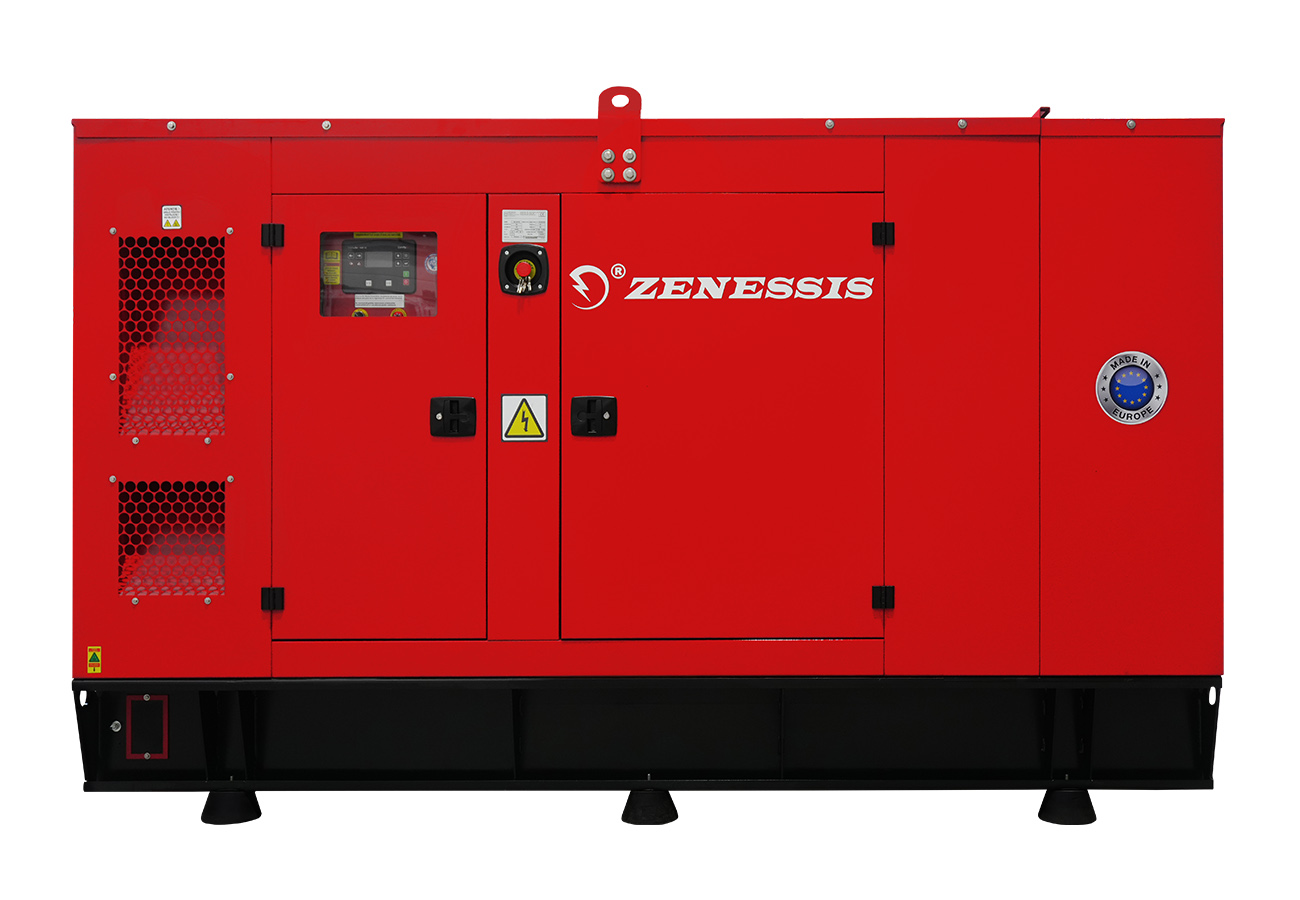

Diesel generator set ZEN 165 TBI
| Engine manufacturer |
Baudouin |
|---|---|
| Fuel |
Diesel |
| Power factor |
0,8 |
| Speed |
1500 RPM |
| Amperage |
215 |
| Standard voltage |
400 / 230 V |
| Power (kVA) |
165 / 148 |
| Power (kW) |
132 / 118 |
| Model |
ZEN 165 TBI |
| Brand |
Baudouin |
Similar products
Diesel generator set ZEN 2000 TBI
| Engine manufacturer |
Baudouin |
|---|---|
| Fuel |
Diesel |
| Power factor |
0,8 |
| Speed |
1500 RPM |
| Amperage |
2610 |
| Standard voltage |
400 / 230 V |
| Power (kVA) |
2000 / 1800 |
| Power (kW) |
1600 / 1440 |
| Model |
ZEN 2000 TBI |
| Brand |
Baudouin |
Diesel generator set ZEN 1900 TBI
| Engine manufacturer |
Baudouin |
|---|---|
| Fuel |
Diesel |
| Power factor |
0,8 |
| Speed |
1500 RPM |
| Amperage |
2479 |
| Standard voltage |
400 / 230 V |
| Power (kVA) |
1900 / 1710 |
| Power (kW) |
1520 / 1368 |
| Model |
ZEN 1900 TBI |
| Brand |
Baudouin |
Diesel generator set ZEN 510 TDH
| Engine manufacturer |
Hyundai |
|---|---|
| Fuel |
Diesel |
| Power factor |
0,8 |
| Speed |
1500 RPM |
| Amperage |
665 |
| Standard voltage |
400 / 230 V |
| Power (kVA) |
510 / 459 |
| Power (kW) |
408 / 367 |
| Model |
ZEN 510 TDH |
| Brand |
Hyundai |
Description
TECHNICAL DETAILS
The ZEN 165 TBI diesel generator produced by Endress Zenessis Group under the Zenessis brand is equipped with BAUDOUIN 6M11G4D0 engine, Strathon / Leroy Somer ECO 165 KW / TAL044 J alternator and ComAp Inteli Lite AMF 25 control system, which ensures the starting of the generator, the control of the parameters, in manual or automatic system. The generator can be supplied with remote control and monitoring as well as other options. Zenessis power generators are guaranteed for 36 months, up to 2000 operating hours.
STANDARD FEATURES
- Diesel engine
- Command & control panel with measurement
- Metal control devices, protection class IP54
- Static battery charger
- Dynamic battery charging alternator
- Controlled thermostat heater for coolant
- Oversized start battery
- Emergency stop buttona
- Chassis with fuel tank sized for 8hrs of autonomy
- Vibration dampers
- Fuel level measuring device
- Electrical lines protected with tubing & gland
- Residential silencer
- Access doors on all 4 sides provided with locks
- Crane or forklift handling system
- Flameproof and soundproof insulation
- Rubber legs
- Metal hinges
DIESEL ENGINE
-
Brand BAUDOUIN
-
Model 6M11G4D0
-
Stand-by power 152 kWm
-
No. of cilinders & arrangement 6 in line
-
Induction system Turbocharged and Intercooled
-
Cooling system Liquid cooling
-
Speed (rpm) 1500 RPM
-
Displacement (l) 6.75 (I)
-
Bore & Stroke (mm) 105 x 130 mm
-
Compression factor 18:1
-
Regulator Electronic
-
Total oil capacity (l) 19 (I)
-
Engine/radiator coolant capacity & hoses 20 (l)
-
Fuel consumption at 100% load (l / h) 24.5 (l / h)
ALTERNATOR
-
Model ECO 165 KW / TAL044 J
-
Frequency (Hz) 50 Hz
-
Concept Brushless, 4 poles
-
Power factor 0,8
-
Phases 3 + N
-
Voltage (V) 400 / 230 V
-
Protection class H
-
Excitation system Electronic
-
Performance 93%
-
Protection IP23
-
Certification test EN 10204:2001
CONTROL PANEL
Easy to use and configure, the InteliLite 4 AMF 25 provides reliable and flexible control of individual generators in both stand-by and prime power applications. With its connectivity and communication features, this product allows you to monitor the activity of your sites anytime and from anywhere.
InteliLite 4 AMF 25 provides:
- Flexible and efficient configuration and monitoring with InteliConfig, ComAp’s PC-based configuration and monitoring tool
- Integrated PLC logic and easy-to-use drag & drop PLC block editor
- AirGate 2.0 for fast connection to your remote devices without having to worry about the IP address of the asset
- User-defined protections and settings in addition to default protections
- Remote control and monitoring of generator operations through WebSupervisor, the cloud-based fleet management tool
- Communication protocols: MODBUS RTU/TCP, SNMP v1/v2c/v3, J1939
- Advanced security features to protect your business and your data
- Event-based history for quick and easy troubleshooting with 350 records available
- Flexible platform that can be upgraded for more advanced applications
- Control for backup applications and main power from a single unit with illuminated symbols
- Integrated communication and control ports (USB, USB host, CAN, RS485)
- Two plug-in module slots for 4G, Ethernet, RS232/485 connections and additional binary inputs/outputs
- Improved hardware platform with switchable analog inputs and 5V reference output for analog sensors
- CAN module extensions
- More accurate measurements thanks to the True Root Mean Square function
- Zero Power Mode to avoid battery drain in main power applications
- Integration with InteliSCADA, intuitive software for monitoring and quickly creating complex SCADA systems
- Secure user management with 5 unique user accounts
- Multifunctional maintenance timers and test timers with RTC battery backup
- Multi ECU (Electronic Control Unit) with support for two control units
- Compatibility with external displays
- Mapare registre Modbus
- Suport multilingv
- Optional geofencing function, useful for effective unit monitoring and theft prevention
- USB power for controller setup
- Dual support for backup and main power applications
- Pulse counters
- Load shedding to maintain power to the most important loads in the event of a power outage
- Dummy Load Management to prevent generator no-load operation
- Dual Starter Support
- Hybrid App Support (FW 1.6.0 or later; hybrid configuration required)
- Modbus Client support for communication with third-party devices (more values available with software key: SKMODCLI03)
InteliLite 4 AMF 25 is also available in a version specifically designed for extremely low temperatures. Use the order code IL4AMF25BLA.
- Left button
- Right button
- 3. Horn Reset button
- 4. Fault Reset button
- 5. Up button
- 6. Page button
- 7. Down button
- 8. Enter button
- 9. Start button
- 10. Stop button
- 11. GCB button. Works in MAN and TEST modes only 12. MCB button. Works in MAN and TEST modes only
- 12. MCB button. 12. MCB button. Works in MAN and TEST modes only
- 13. Generator status indicator
- 14. GCB On. Green LEDs are on if GCB is closed and Gen-set is healthy
- 15. Load
- 16. Graphic B/W display, 132 x 64 pixeli
- 17. Main status indicator
- 18. MCB On. The green LEDs are “on” when the MCB is closed and the network is within the preset parameters.
COMMAND MODULE STANDARD SPECIFICATIONS
- Microprocessor control
- 132 x 64 pixeli LCD display
- Programming on front panel as well as through PC software
- Control buttons and soft touch navigation
- Remote communication via USB or with optional modules via RS232, RS485, Ethernet or SMS
- Store 180 events with date and time
- Maintenance programming 3 levels
- Engine heater control –Optional
Configuration:
- 1. ComAp AMF25 command module
- 2. Circuit Breaker protection
- 3. Locks
- 4. Alarm
- 5. START button ON / OFF
- 6. Hinges
- 7. Maintenance schedule
- 8. Metal box
DISPLAYS
- Engine – engine speed; oil pressure; coolant temperature; running time; battery voltage; maintenance data.
- Alternator – voltage (L – L, L – N); current (L1 – L2 – L3); frequency; kW; Pf; kVAr; kWh,kVAh, kVarh; phase sequence.
- Main network – voltage (L – L, L – N); frequency, mains ready; mains off; generator set ready, generator set disconnected, active power kW, apparent power kVA, reactive power kVA r, power factor, phase sequence.
- Warning – battery faulty charging, low battery voltage, fail to stop, low fuel level, overload, phase reversing, speed sensor failure.
- Alarms – low oil pressure, high engine temperature, under / over voltage, under / overfrequency, under / overvoltage, ECU fault -optional.
- Status displays – missed start, emergency stop, low oil pressure, high engine temperature, under / overspeed, under / overfrequency, under / overvoltage, oil sensor, phase rotation, overload, overcurrent group, phase reversal.
Static battery charger
Made with TSD technology, with high efficiency. Protected for short- circuit currents, it can be used as a current source, input voltage 196-264 V, output voltage 27.6 V / 5A or 13.8 V / 5A
Standards
Electrical safety / EMC, BS EN 60950; BS EN 60950 – 6 – 2 EMC; BS EN 61000 – 6 – 4 EMC.

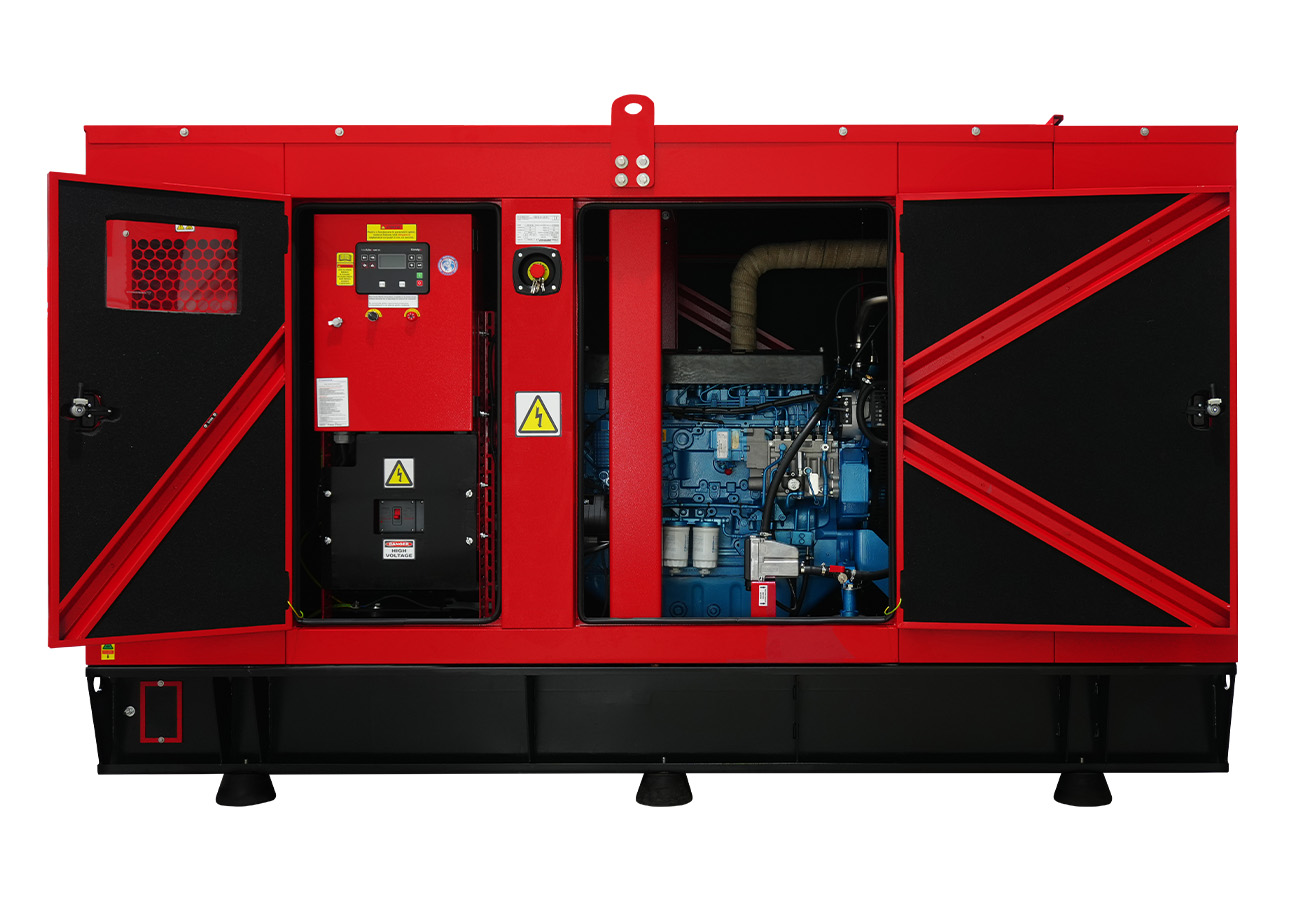

CANOPY
Made of zinc plate steel, painted in electrostatic field, soundproofed, fire protect. It is modularly designed with in-door access doors on all sides of the generator. The exhaust pan is residential type, mounted inside the casing. The carcasses are designed to optimize the cooling of the engine and alternator assembly, and can be mounted outdoors, providing protection against weathering and low noise levels
- 1. Control panel
- 2. Access door for control module
- 3. Engine and alternator access door
- 4. Points for crane lifting
- 5. Retention tray
- 6. Radiator cap
- 7. Hot air outlet grills
- 8. Handles provided with locks
- 9. Lifting/pulling holes
- 10. Base frame
- 11. Emergency button
- 12. Exhaust Gas Valve
- 13. Cable access space
- 14. Air intake grills
- 15. Rubber legs
DIMENSIONS AND WEIGHT
Dimensions and weight of open genset
-
Sizes (L x W x H) (mm) 2695 x 1100 x 1795
-
Weight (kg) 1550
-
Fuel tank capacity (liters) 200
-
Noise level (from distance of 7m) 82 db
Dimensions and weight of closed genset
-
Sizes (L x W x H) (mm) 3195 x 1200 x 2045
-
Weight (kg) 2050
-
Fuel tank capacity (liters) 200
-
Noise level (from distance of 7m) 70 db
OPTIONAL FEATURES
- Electrical panel anti-condensation heating system
- Fuel / oil heating system
- Coolant heating circulation pump
- Oil drain pump
- Remote monitoring & control system
- AAR transfer panel with 3/4 poles
- 3/4 pole differential protection
- Sokets 400 V/ 230 V
- Fuel filter with water detection
- Bypass panel – ENDRESS patented invention – OSIM patent 00010 / 2012
- Trailer
- Start by remote control
- Groundless protection
- Interior lightings with switches operated at doors opening
- Liquid retention tray
- Liquid leakage detection sensor
- Motorized ATS, ENDRESS patented invention – OSIM patent 00048 / 2015
- Exterior fuel filler cap with lock
- Pocket system integrated in the chassis for lifting with forklift
- Fire extinguisher with internal housing support
- Super soundproof housing
- Intake air heating spark plug
- Grounding electrodes
- Fuel transfer automatic pump
- Mobile distribution panel with 4 sockets
- Cable reel
- Fire detector with automatic shutdown generator set
- Fire extinguishing system with inert gas
OPTIONAL: RAR APPROVED AUTO TRAILER
Model: EGR 3000
Certifications ENDRESS ZENESSIS GROUP S.R.L.
ZENESSIS generator sets are CE compliant, and are tested according to EU noise legislation 2000/14/EC.
Reference ambient conditions: 1000 mbar; 25° C; 30% relative humidity; power according to ISO 3046 / ISO 8528 standards
Prime power (PRP) – ISO 8528
Primary power (PRP) – is the continuous power that a generator is capable of supplying continuously while supplying a variable electrical load when operating for an unlimited number of hours per year under agreed operating conditions, within the maintenance intervals and procedures prescribed by the manufacturer.
Standby power (ESP) – ISO 8528
Standby power (ESP) is the maximum power available at a variable load, under the operating conditions provided, that a generator is able to provide in case of power failure or under test conditions, maintenance intervals and procedures being performed as prescribed by the manufacturer.
